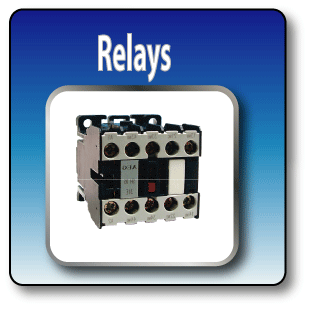

CONTROL RELAYS
(Click icon for more information)
Recognized world wide as one of the leading heavy duty industrial product lines, AEG control relays are used worldwide in over 100 countries and are
positive guided, great for safety circuits.
Technical Specifications
- 600 volt rated
- 16 or 20 Amp
- 4 through 10 poles
- Voltage tolerance:
-25% to +10% on AC coils
-15% to +10% on DC coils
- UL, CSA, & CE compliant
Features
- Din
rail or panel mountable
- Positive guided contacts
- 100% stainless steel springs
- 30,000,000 operations
- Add on poles, timers, and latch kits
Benefits
- Positive guided for safety circuits
- Wide range coils, greater protection in low voltages
- Wide temperature range to 60 deg. C
- Field flexible with add-ons
- Compact design saves space
|
SH04: 16 Amp, 4 pole
SH08: 20 Amp, 8 pole |
